EX high pass filtering fine protection
Broadband high-performance radio frequency (RF) transmission path and direct current (DC) coaxial feed path composite cascade (RF+DC PATH) fine protection device, using RF coupled DC isolation path and DC (DC) coaxial feed path parallel multiplexing technology to realize the synchronous protection of RF transmission path and DC path; The rapid response cascade transient suppression technology and push-pull voltage limiting technology are used to limit the lightning electromagnetic pulse [LEMP] and its surge voltage within the embedded voltage range of the suppression device, so as to realize the effective all-weather lightning electromagnetic pulse (LEMP) and its surge fine protection of the key coaxial components of wireless equipment and system.
DX includes four series of products: DC power path special protection DS, RF transmission path and DC feed path composite protection DX, RF path and DC bias branch composite protection DXJ, and extended band DE.
RF Performance
Broadband C5:700-2700MHz、C7:2.0-6.0GHz
VSWR C5:VSWR≤1:1.1、C7: VSWR≤1:2.1
Insertion loss C5:IL≤0.1dB、C7:IL≤0.2dB
RF power transmission capability PRMS≤500W
Protection Performance
Multiple pulse impulse withstand capability In=20kA X 10
Maximum transient pulse impact resistance Imax=50kA X 1
Residual voltage Ures≤10VDC±20%
Residual energy Jres≤10nJ±20%

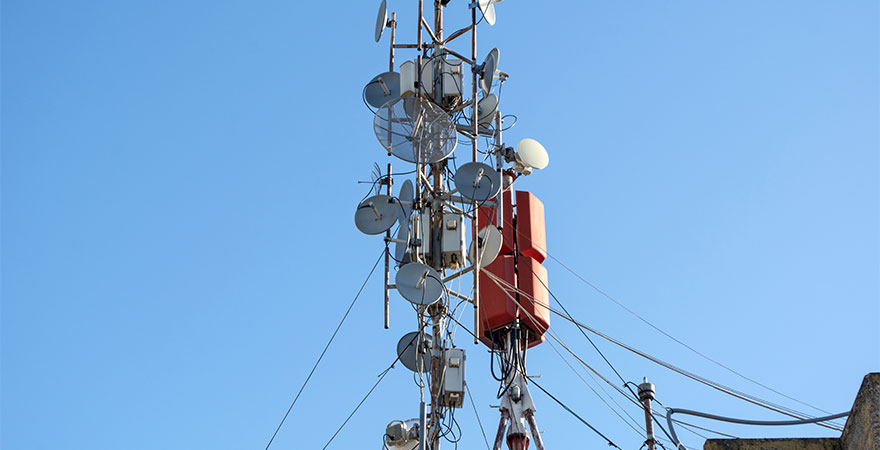

Scope of application
  • Oil and gas fields
  • Wireless data link
  • aviation and navigation equipment, etc

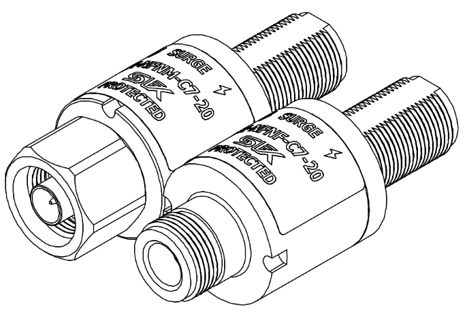

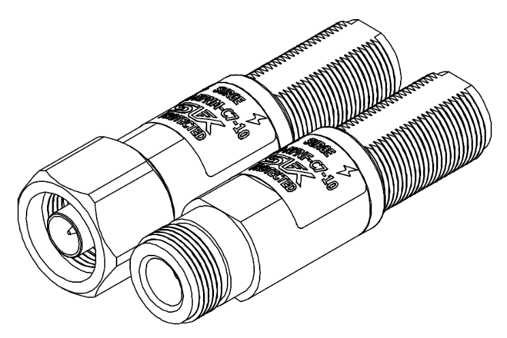

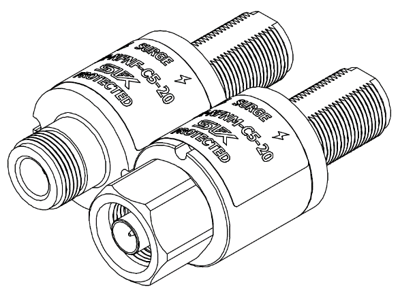

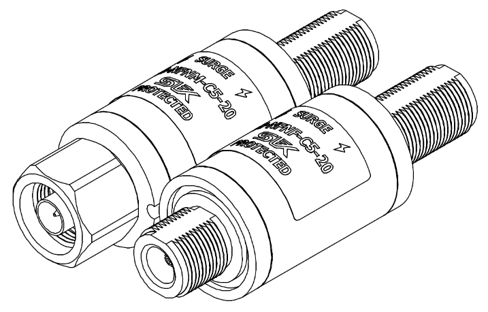

Product family
  • EX -- Standard EX configuration class
  • EM -- Compact
  • EX -- configuration class
  • ES -- Bidirectional reciprocal class
