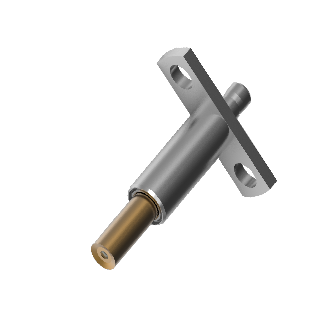

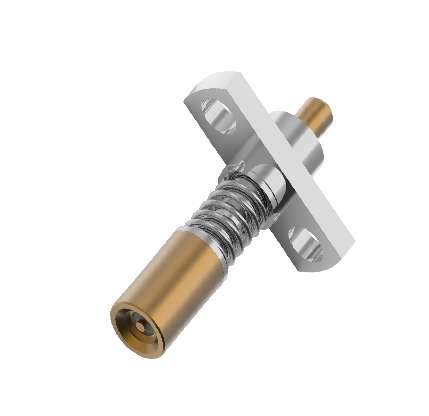

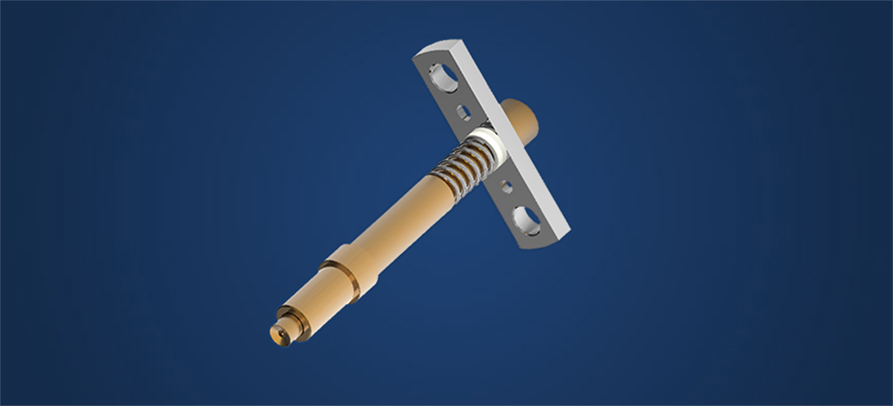

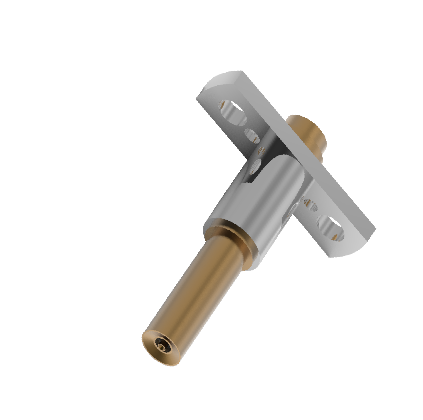

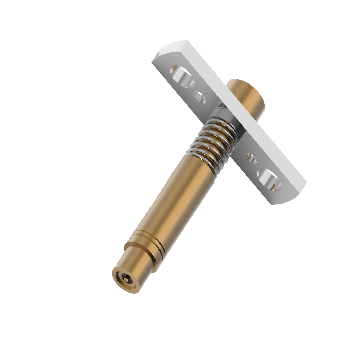

Micro RF Connector Probe
The micro RF connector probe is used as a signal relay, connects the mobile phone RF signal to the network analyser to form a loop for testing purposes.
It can be used for fast contact and separation from the RF switch, the main application scenario is mobile phone automation testing.
Attribute parameters
Characteristic impedance 50 Ohm
Frequency range DC-12 GHz
Insertion loss >-0.8dB@DC~12GHz
Durability >20000次
VSWR <1.3@DC~8GHz,<1.8@8~12GHz
Features and Advantages
  • Full range of models.
  • Frequency  up to 12GHz
  • Up to 20,000 cycles or more

Application Scenarios
  • Smartphones
  • Terminal production testing
