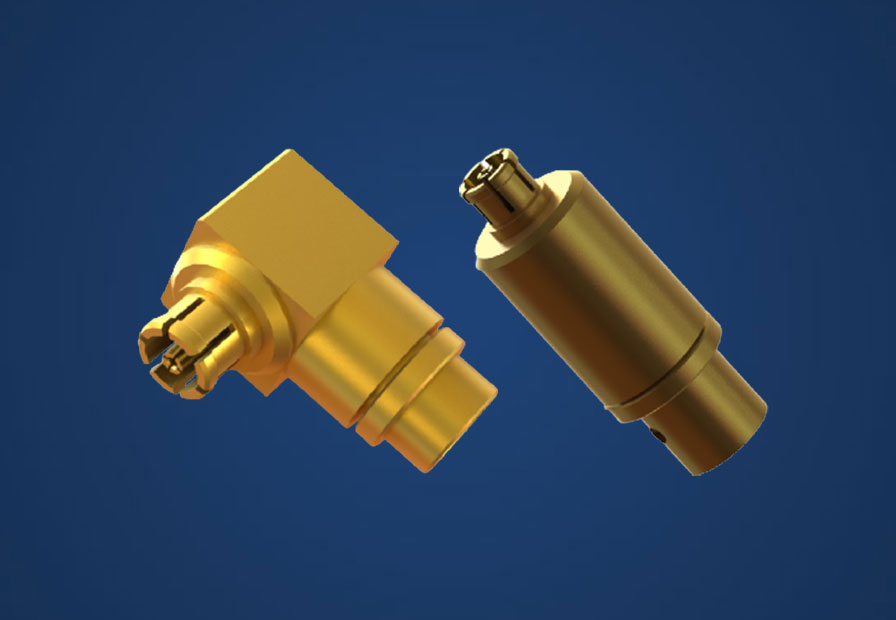

SSMCX ultra-micro connectors are designed for electronic applications with dimensions and weight restrictions (compact, low weight, high density), while maintaining good radio frequency characteristics. The SSMCX connector is 35% lower than the MMCX connector, with 50 and 75 ohm versions to choose from. Extremely compact size SSMCX is an ideal connector for multi-port high-density RF applications. SSMCX coaxial connector has 4 and 6 port layout optional, vertical and right angle directions, with 3.00 mm spacing of coaxial contacts, and standard and non-magnetic versions. SSMCX connector characteristics and advantage range from DC to 6 GHz - cover a variety of potential low loss cable models - provide a better signal intensity metal printed circuit board lock column - correctly calibrate the printed circuit board, increase intensity, to ensure After the welding period and after
