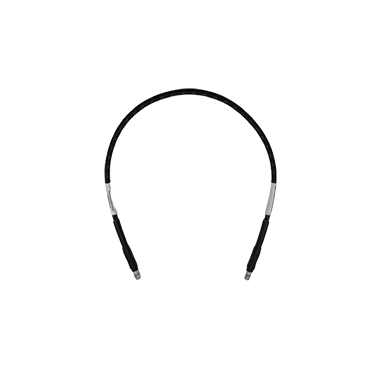

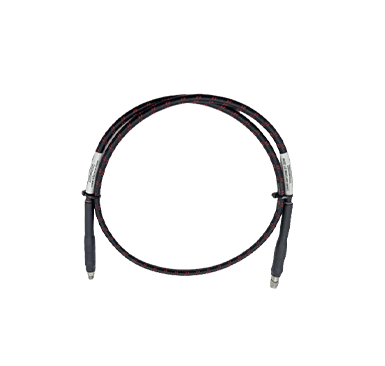

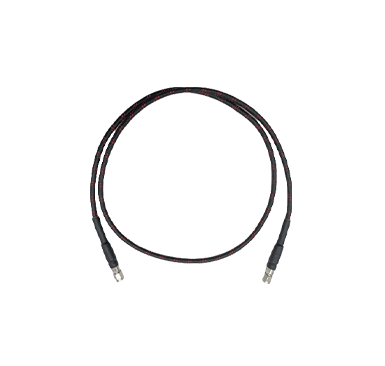

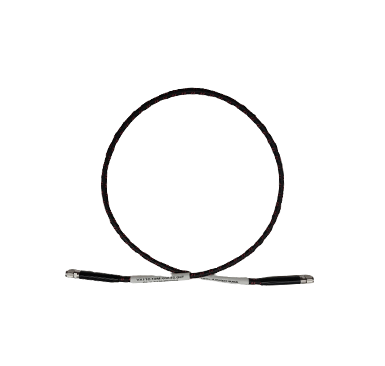

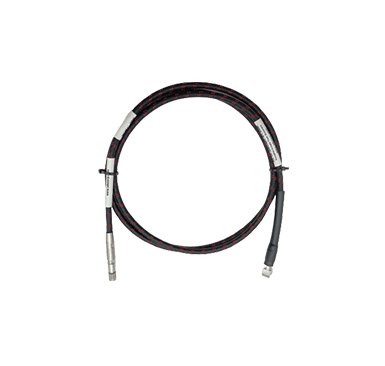

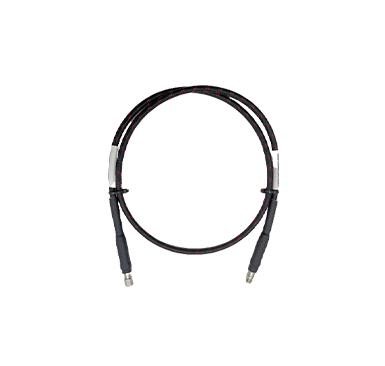

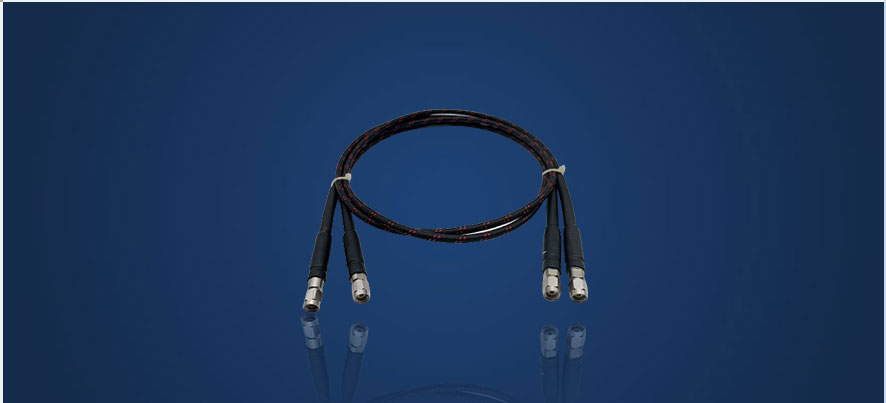

SPC precision test cable assemblies

SPC precision test cable assemblies include VA, K, and KN series.
VA test cable is a test cable with low VSWR, which can be up to 110GHz. VA test cable also has excellent performance and precision, steady amplitude and phase. The advanced cable construction and the most resistant armor are applied in it.
K test cable is a high performance, cost-effective and durable test cable, which designed for a broad range of test and interconnect applications.

Electrical Performance
Characteristic impedance	50 Ohm
Frequency range	18~110 GHz
Medium pressure	N/A
Return loss	>16 dB

Mechanical behavior
Minimum bending radius	30mm/30mm/20mm/54mm/54mm/54mm
Cable outer diameter	6mm/5mm/4.9mm/11mm/10.2mm/10.2mm
Product family	VA70/VA/K/KP/KR/KS

Product Features

Low loss and low VSWR
Steady amplitude and phase
Crush resistance (up to 1000 N) with armor
Durability - lower measurement cost
Good bending flexibility, various armors for options

Application scenarios

VNA Measurements
RF/Microwave Test Instruments
Production Test Stations
Electromagnetic Compatibility Tests

Product List
