Tbend Series

The Tbend series is a bending and stretch resistant low loss cable. It is equipped with a stainless steel braided shield that resists bending and stretching, is electrically stable regardless of environmental factors, and has frequencies up to 40GHz. Used in test instruments, space equipment and military applications.

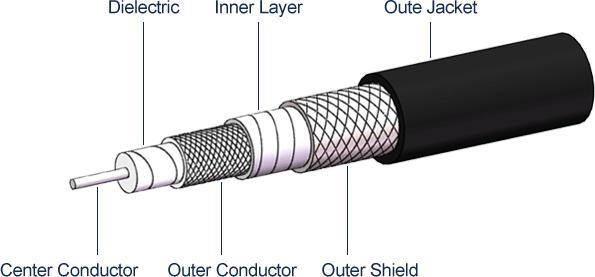

Product Structure
Center Conductor	Silver plated copper
Dielectric	LD PTFE
Outer Conductor	Silver plated copper
Outer shield	Stainless steel wire
Outer Jacket	Transparent purple FEP
Inner Layer	Aluminium Foil

Features and Advantages

Excellent mechanical stability
Up to 40 GHz
Low losses

Typical Applications

Test instruments
Space equipment
Military applications

Product List

Tbend-250 High Performance Microwave Coax Cable

Working frequency: 40 GHz
Cable outer diameter: 2.5mm
Temperature range: -55℃~125℃
Tbend-250-L High Performance Microwave Coax Cable

Working frequency: 40 GHz
Cable outer diameter: 2.5mm
Temperature range: -55℃~165℃
Tbend-260 High Performance Microwave Coax Cable

Working frequency: 40 GHz
Cable outer diameter: 2.6mm
Temperature range: -55℃~165℃
Tbend-360 High Performance Microwave Coax Cable

Working frequency: 26.5 GHz
Cable outer diameter: 3.6mm
Temperature range: -55℃~165℃
