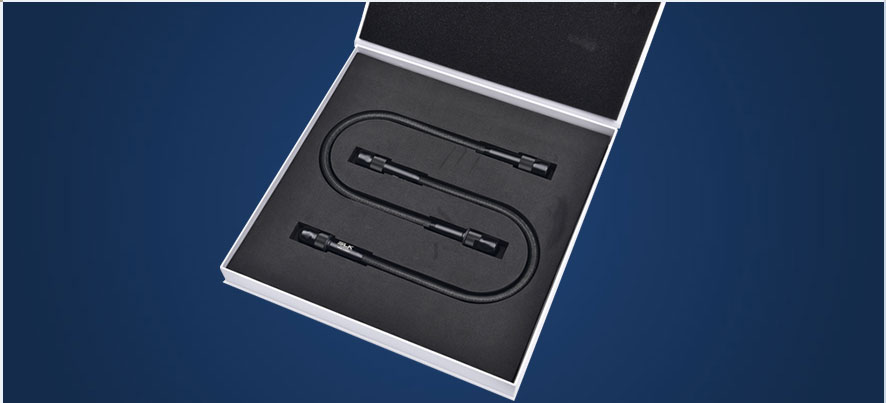

VNA precision test cable assemblies
VNA test cables realized the highest demands of industrial test applications. The highly flexible test cables are characterized by excellent phase and amplitude stability, a flexible armoring protection in microwave cable can decrease abrasion and mechanical damages.
Electrical Performance
Characteristic impedance 50 Ohm
Frequency range 26.5~67 GHz
Medium pressure N/A
Return loss >16 dB
Mechanical behavior
Minimum bending radius 50 mm
Cable outer diameter 14.3mm
Product Features
  • Applied in cable assemblies with various frequencies:18 GHz, 26.5 GHz, 40 GHz, 50 GHz and 67 GHz
  • Reinforcement nuts provided in different connector series
  • Standard length of 600 mm, or customized lengths
  • Excellent phase and stable amplitude
Application scenarios

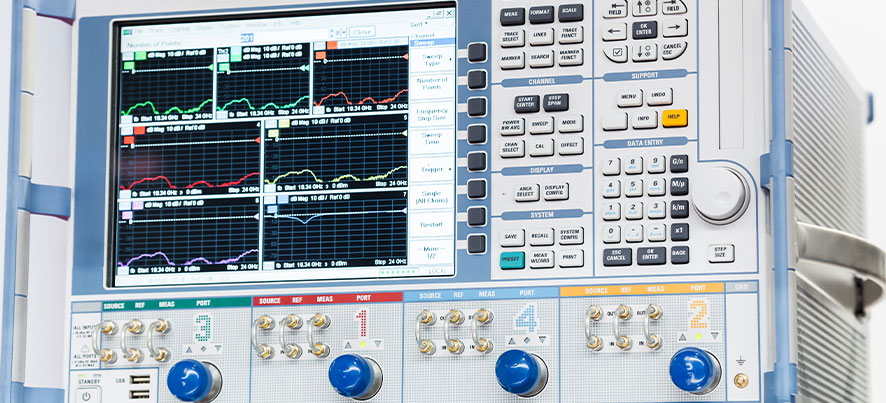

  • VNA Measurements
  • RF/Microwave Test Instruments
  • Production Test Stations
  • Electromagnetic Compatibility Tests
