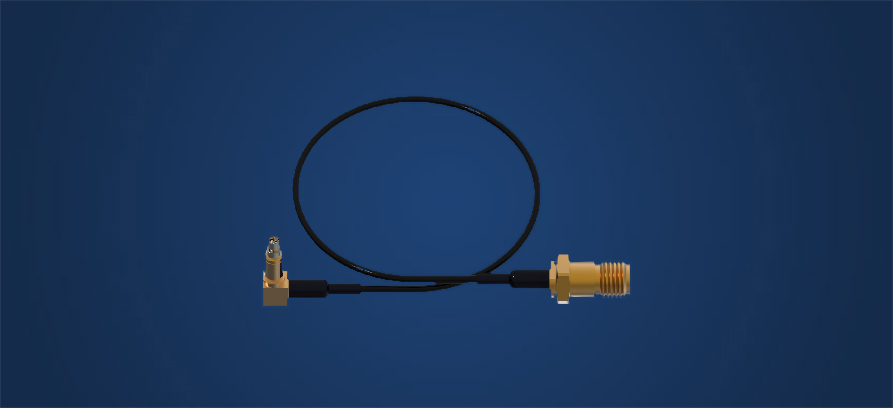

Test Leads
Probe Test Leads is usually used for quality testing by mobile phone manufacturers or for small batch prototype testing in laboratories; it is less compatible than automatic probes, does not require tooling to assist in testing and can be plugged in and out.

Attribute parameters
Characteristic impedance 50 Ohm
Frequency range DC-12 GHz
Insertion loss >-0.8dB@DC~12GHz
Durability >200次
VSWR <1.3@DC~8GHz,<1.5@8~12GHz
Features and Advantages
  • Full range of models
  • Frequency  up to 12GHz
  • Up to 20,000 cycles or more

Application Scenarios
  • Smartphones
  • Terminal production testing
