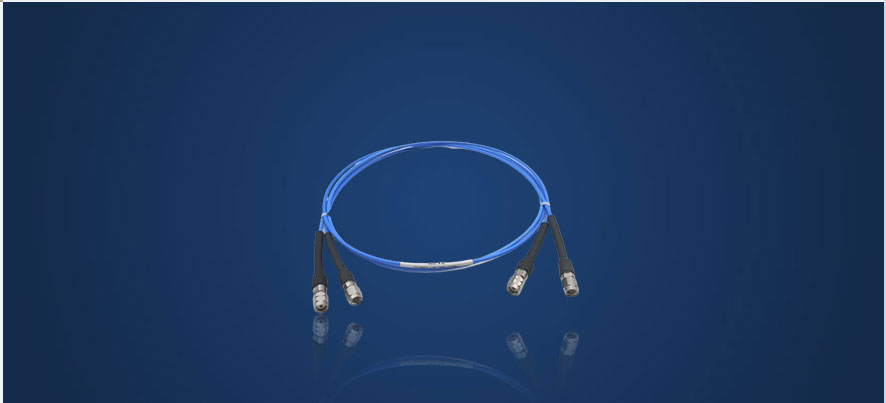

Conventional test leads

The test lead is composed of conventional .086” & .141” cables and corresponding connectors, mainly used for port interconnection.

Electrical Performance
Characteristic impedance	50 Ohm
Frequency range	DC-26.5 GHz
Medium pressure	N/A
Return loss	>16 dB

Mechanical behavior
Minimum bending radius	20mm
Cable outer diameter	4.0mm

Product Features

Low loss & Low VSWR
Economic

Application scenarios

VNA Measurements
RF/Microwave Test Instruments

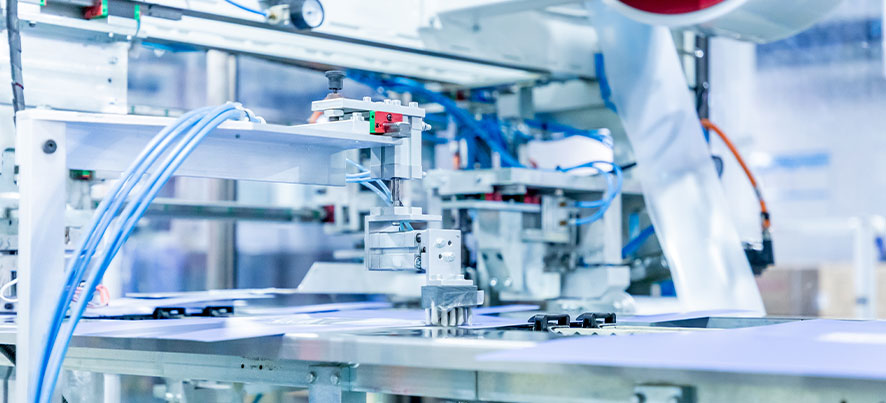

Production Test Stations
Electromagnetic Compatibility Tests

Product List

SMA straight female to SMP straight male Cable assemblies

SLK Part Number: MAFSSPMS-301-0500-01
Cable:Nbend-260
Frequency: DC~12 GHz
SMA right angle male to SMA right angle male Cable assemblies

SLK Part Number: MAMRMAMR-301-0100-01
Cable:Nbend-260
Frequency: DC~9 GHz
SMA right angle male to SMA straight male Cable assemblies

SLK Part Number: MAMRMAMS-301-0100-01
Cable:Nbend-260
Frequency: DC~9 GHz
SMA right angle male to SMP right angle female Cable assemblies

SLK Part Number: MAMRSPFR-301-0110-01
Cable:Nbend-260
Frequency: DC~9 GHz
SMA straight male to SMA straight male cable assemblies

SLK Part Number: MAMSMAMS-301-0200-02
Cable:Nbend-260
Frequency: DC~6 GHz
SMA straight male to SMP right angle female cable assemblies

SLK Part Number: MAMSMPFR-301-0450-01
Cable:Nbend-260
Frequency: DC~6 GHz
SMPM straight female to 2.92mm straight male cable assemblies

SLK Part Number: MPFSP9MS-301-0100-02
Cable:Nbend-260
Frequency: DC~40 GHz
2.4mm straight male to 2.92mm straight male cable assemblies

SLK Part Number: P4MSP9MS-301-0500-01
Cable:Nbend-260
Frequency: DC~40 GHz
2.92mm straight female to 2.92mm straight male cable assemblies

SLK Part Number:P9FSP9MS-301-0130-01
Cable:Nbend-260
Frequency: DC~40 GHz
2.92mm straight male to 2.92mm straight male cable assemblies

SLK Part Number:P9MSP9MS-044-1500-01
Cable:Nbend-260
Frequency: DC~40 GHz
SMA straight female to SSMP right angle female cable assemblies

SLK Part Number:MAFSMPFR-044-0500-01
Cable:Nbend-280
Frequency: DC~12 GHz
SMA straight male to SSMP right angle female cable assemblies

SLK Part Number:MAMSMPFS-301-0450-01
Cable:Nbend-280
Frequency: DC~8 GHz
SMA straight male to SMA straight male cable assemblies

SLK Part Number: MAMSMAMS-302-0070-01
Cable:Nbend-400
Frequency: DC~18 GHz
SMA straight male to N straight male cable assemblies

SLK Part Number:MAMSNCMS-302-1000-02
Cable:Nbend-400
Frequency: DC~18 GHz
