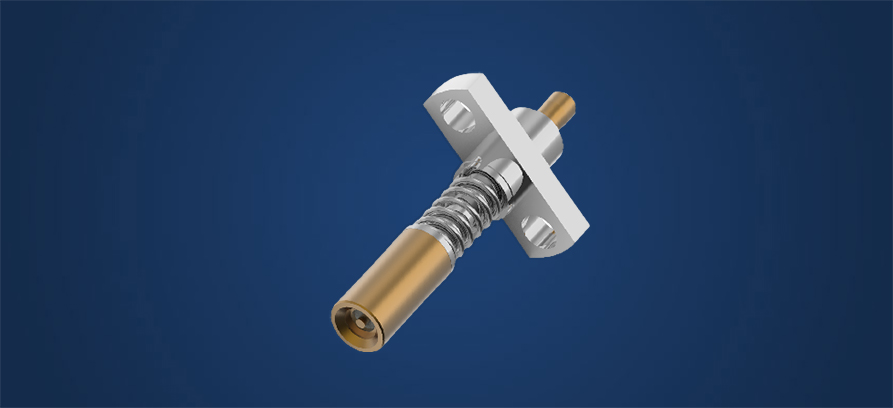

RF Switch Probe
The RF SW test probe is used as a signal relay to connect the mobile phone RF signal to the network analyser to form a loop for testing purposes; it can be quickly contacted and separated from the RF switch.
The main application scenario is mobile phone automation testing, which is more compatible than the RF switch probe.
Attribute parameters
Characteristic impedance 50 Ohm
Frequency range DC-12 GHz
Insertion loss >-0.8dB@DC~12GHz
Durability >20000 cycles
VSWR <1.3@DC~8GHz,<1.8@8~12GHz
Features and Advantages
  • Full range of models
  • Frequency  up to 12GHz
  • Up to 20,000 cycles or more

Application Scenarios
  • Smartphones
  • Terminal production testing
