Line end connector

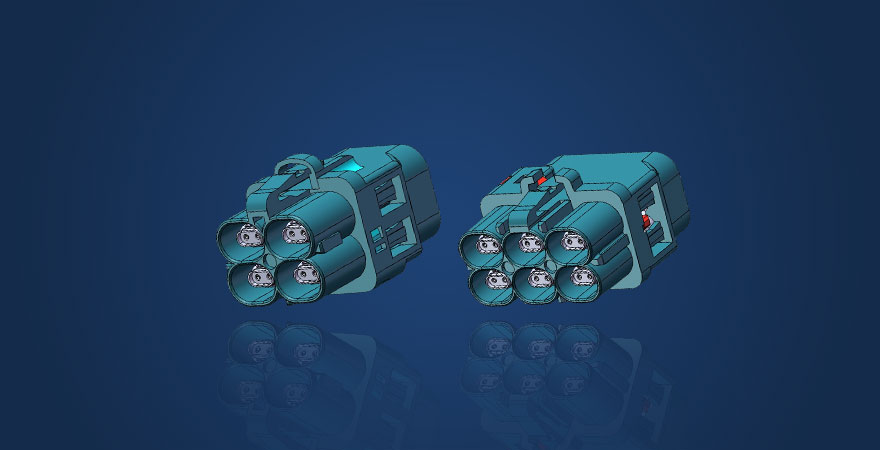

The next generation Ethernet interface (SPE, or H-MTD) is a differential signal connector with a modular design structure. As an alternative product to the HSD series, it has absolute advantages in performance and space saving, and will gradually be applied to automotive Ethernet, V2X, and electronic communication products in the industrial field
Electrical performance
Characteristic impedance 100 Ohm
Frequency range 0-10 GHz
working voltage 60VDC
insulation resistance ≥1000MΩ
Carrying capacity ≤1.5A DC@85℃
standing-wave ratio ≥17dB@6GHz
mechanical properties
Insertion and unplugging times (standard) ≥25
Insertion force ≤45N
separating force ≥45N
Retention force ≥110N
Anti Misinsertion Force ≥150N
Main characteristics
  • Frequency: DC~15 GHz
  • ADAS system digital signal connector
  • Small integration, saving 50% space
  • high reliability
  • 1. Optional channels 2, 4, and 6
application area
  • Autopilot
  • infotainment
  • On board Gigabit and 10 Gigabit Ethernet
  • LVDS
  • V2X system
