SMB series products

SMB is a small push-in RF coaxial connector with characteristics such as small size, light weight, convenient use, and excellent electrical performance. It is suitable for connecting coaxial cables in high-frequency circuits of radio equipment and electronic instruments. The internal contact of the FAKRA connector is the SMB connector.

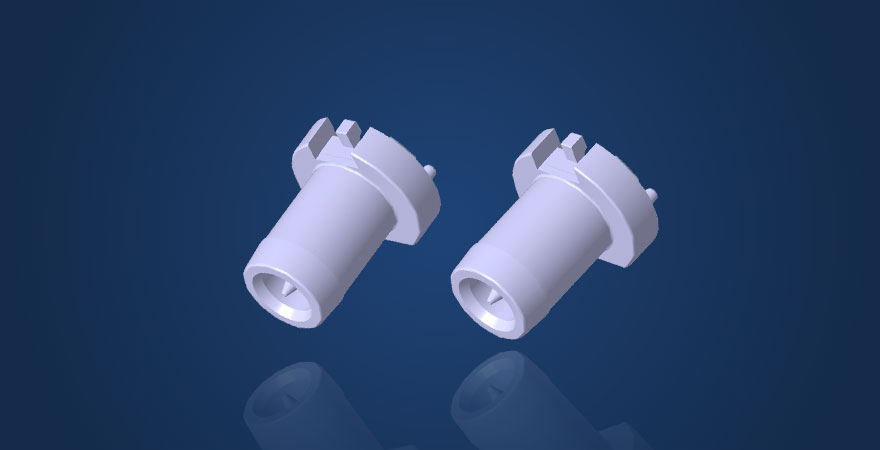

SMB1+2 is a practical type of connector developed by QuickLink, and its structural dimensions and waterproof requirements can be customized according to user requirements.

Electrical performance
Characteristic impedance 100 Ohm
Frequency range 0-10 GHz
working voltage 60VDC
insulation resistance ≥1000MΩ
Carrying capacity ≤1.5A DC@85℃
standing-wave ratio ≥17dB@6GHz
mechanical properties
Insertion and unplugging times (standard) ≥25
Insertion force ≤45N
separating force ≥45N
Retention force ≥110N
Anti Misinsertion Force ≥150N
Main characteristics
  • Frequency: DC~6 GHz
  • Quick insertion and detachment
  • Compact size, supports blind insertion
  • Waterproof IP69K (matching male head)
  • Highly reliable contact
application area

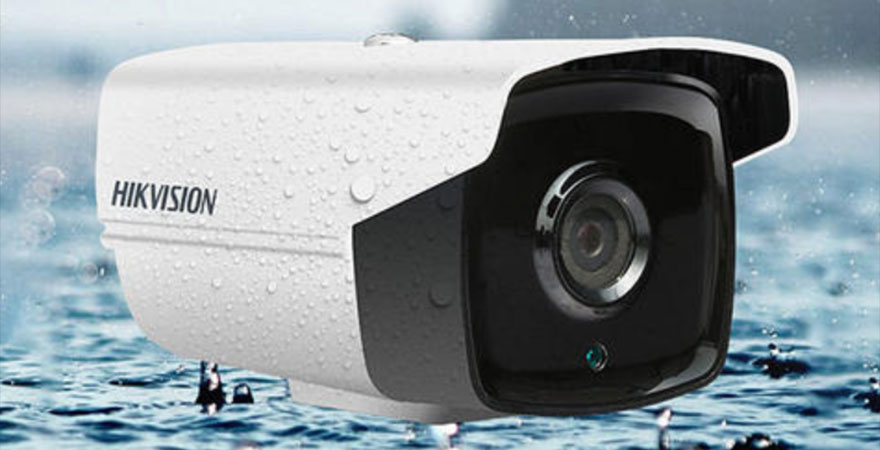

  • Camera module
  • Antenna Module
  • Camera heating and defogging
