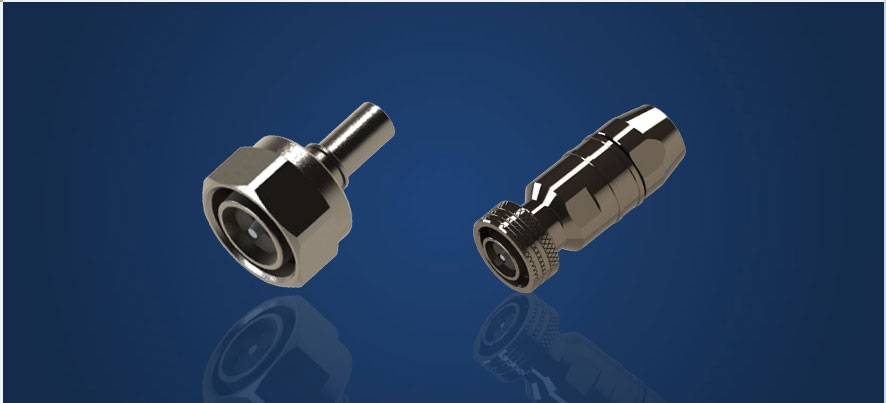

4.3-10 series of RF coaxial connectors have smaller and lighter structural characteristics than DIN type connector, providing lower intermodulation electrical performance. The connector adopts the plane separation technology of electrical and mechanical structures. The independent coupling mechanism is a key feature of this connector, which means that PIM and RL are better, while connecting torque is smaller, easy installing.
Electrical Performance
Impedance 50 Ohm
Frequency range 0-12 GHz
Operating voltage N/A
Dielectric withstanding voltage 1000 V(rms)
Conductor resistance Inner conductor: ≤1.0 mΩ (initial value)
Outer conductor: ≤1.0 mΩ (initial value)
Insulation resistance ≥5000 MΩ
VSWR Straight: ≤1.30 (typical value)
Right angle: ≤1.35 (typical value)
3rd Intermodulation(2X20W) ≤160 dBc(typical value)
Mechanical Characteristics
Center pin pull-in force ≤4.5 lbs
Center pin pull-out force ≥0.35 lbs
Center pin retention ≥6.75 lbs
Durability 500 times

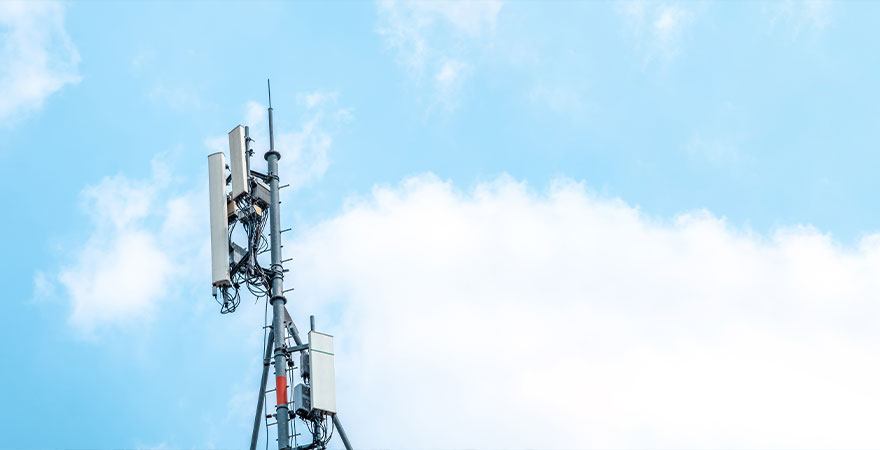

  • It is widely used on base stations, distributed antenna systems, indoor base station antenna equipments, etc
  • For the production and testing areas of 5G base station antennas, passive components and other manufacturers
Products Series
  • Connectors for cables
  • PCB Mounting connectors
