Application
- Suitable for frequency and fast connection, space limited applications.
- It is widely used in wireless communication, industrial applications, aerospace and other fields.
- Suitable for cable and printed circuit board applications.
| Electrical Performance | |
|---|---|
| Impedance | 50 Ohm |
| Frequency range | 0-6 GHz |
| Operating voltage | 170 V(RMS) |
| Work Voltage | 750 V(RMS) |
| Conductor resistance | Inner conductor: ≤5.0 mΩ (initial value) |
| Outer conductor: ≤2.5 mΩ (initial value) | |
| Insulation resistance | ≥1000 mΩ |

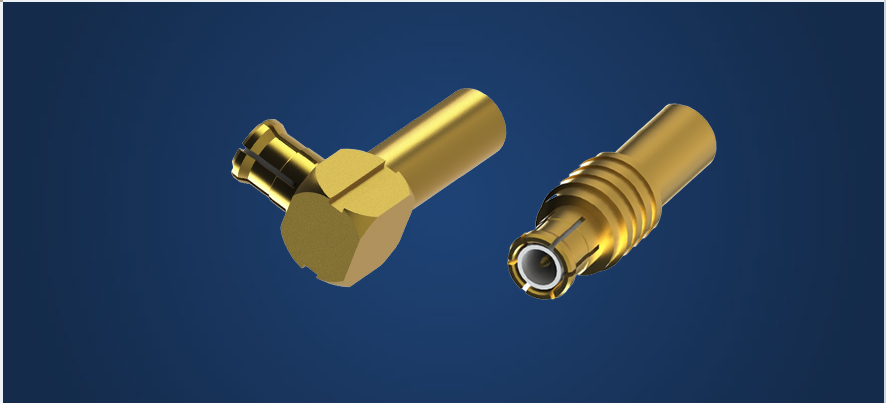

| VSWR | Straight: ≤1.30 (typical value) |
| Right angle: ≤1.30 (typical value) | |
| Mechanical Characteristics | |
|---|---|
| Pull-in force | ≤14 lbs |
| Pull-out force | 1.8 lbs-4.5 lbs |
| Center pin retention | ≥2.25 lbs |
| Durability | 500 times |
