1.35mm

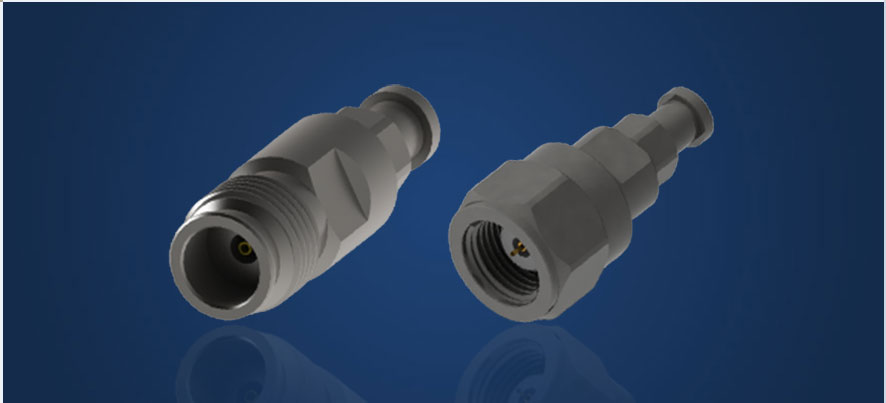

RPC-1.35* precision connector series is for the growing demand of connection in precision and high-performance, up to 90 GHz. The series solve the expanding market for 5G, industrial sensors in the E-Band, millimeter wave sensors for self-driving vehicles, WLAN IEEE 802.11ax and 802.11ay. RPC-1.35 connectors offer a high strength mechanical design, minimum 3000 mating cycles, high connector repeatability, and maximum return loss values, ensuring no delays of RF measurements in the E-Band.

Electrical Performance
Impedance	50 Ohm
Frequency range	0-90 GHz
Operating voltage	170 V(RMS)
Dielectric withstanding voltage	500 V(RMS)
Conductor resistance	Inner conductor: ≤4.0 mΩ (initial value)
Conductor resistance	Outer conductor: ≤1.0 mΩ (initial value)
Insulation resistance	≥5000 mΩ
VSWR	≤1.35
VSWR

Mechanical Characteristics
Center Pin retention force	>4 lbs
Coupling torque	7.1～8.9 in.lbs
Coupling nut retention force	>68 lbs
Durability	>500 cycles

Application

Precision measurements in high microwave applications up to 90 GHz
For E-band applications

Products Series

Cable connectors
Adaptors & bullets
Cable assemblies
