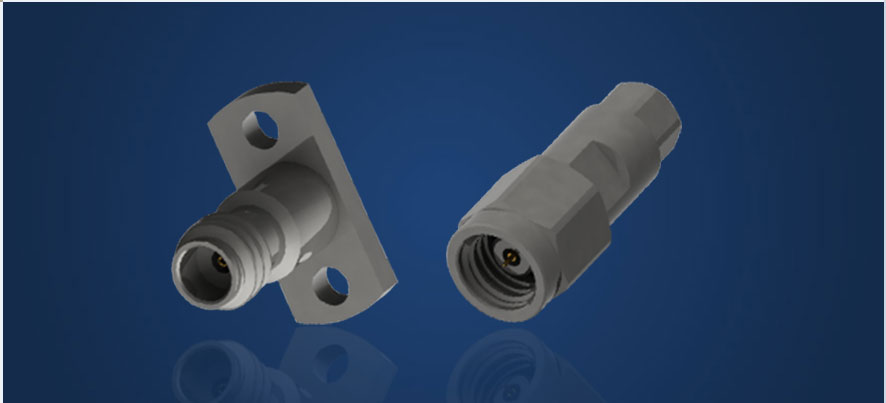

Application
- Test and Measurement
- High Speed Digital
- Instrumentation
| Electrical Performance | |
|---|---|
| Impedance | 50 Ohm |
| Frequency range | 0-110 GHz |
| Operating voltage | 170 V(rms) |
| Dielectric withstanding voltage | 500 V(rms) |
| Conductor resistance | Inner conductor: ≤4.0 mΩ (initial value) |
| Outer conductor: ≤1.0 mΩ (initial value) | |
| Insulation resistance | ≥1500 mΩ |
| VSWR | ≤1.35 |
| Mechanical Characteristics | |
|---|---|
| Center Pin retention force | >13 N |
| Coupling torque | 3.5～4.4 in-lbs |
| Coupling nut retention force | >50 lbs |
| Durability | >500 cycles |
