Application

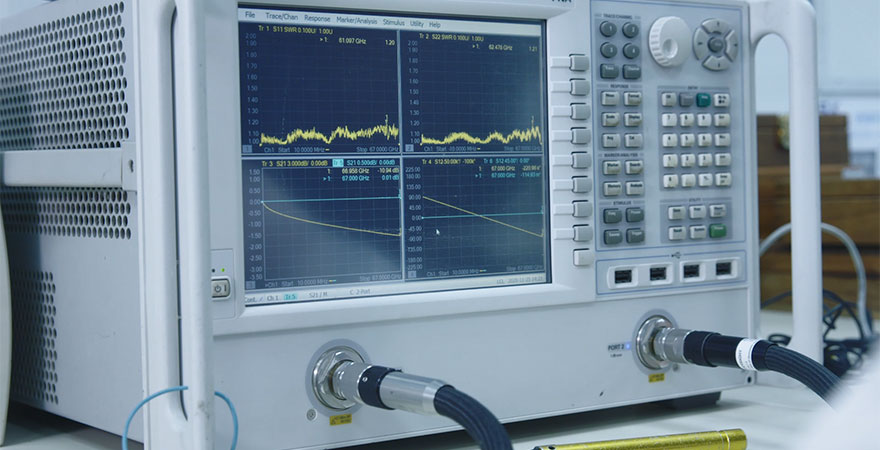

- Precision measurements in high microwave applications up to 26.5GHz .

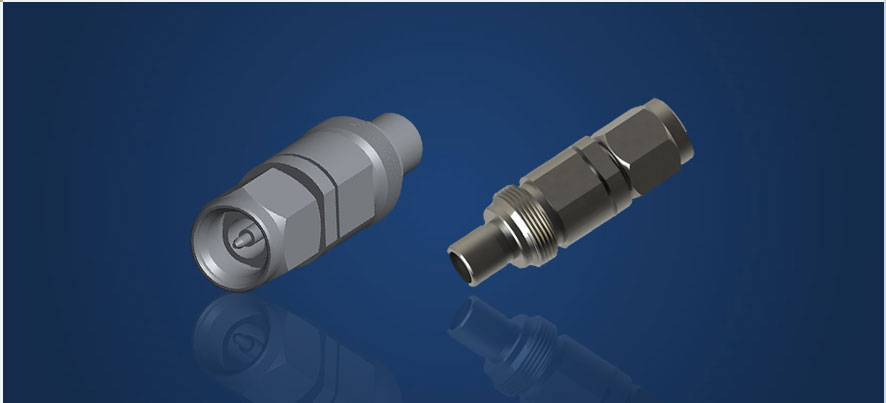

3.5mm connectors, male
or female type with 50 Ohm impedance. There are bulkhead type and mountless options. 3.5mm connector designs include clamp/solder or mount on site and other
customized connectors.
| Electrical Performance | |
|---|---|
| Impedance | 50 Ohm |
| Frequency range | 0-26.5 GHz |
| Operating Voltage | 335 V(RMS) |
| Dielectric withstanding voltage | 1000V(RMS) |
| Conductor resistance | Inner conductor: ≤0.75 mΩ (initial value) |
| Outer conductor: ≤0.13 mΩ (initial value) | |
| Insulation resistance | ≥1000 mΩ |
| VSWR | ≤1.35 |
| Mechanical Characteristics | |
|---|---|
| Center Pin retention force | >4 lbs |
| Coupling torque | 11.5～15 in.lbs |
| Coupling nut retention force | >68 lbs |
| Durability | >500 cycles |
