Application

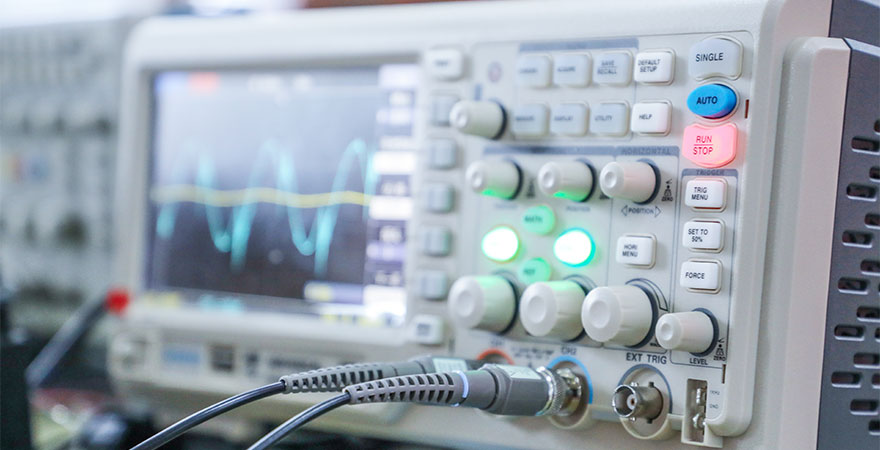

- 1.Test & measurement
- 2.Highly shielded interconnect for high data rate applications
- 3.Defence or aerospace applications
- 4.Ideally suited for high density applications up to 100 GHz
| Electrical Performance | |
|---|---|
| Impedance | 50 Ohm |
| Frequency range | DC-100 GHz |
| Operating voltage | 150 V(rms) |
| Dielectric Withstanding Voltage | 325 V(rms) |
| Conductor resistance | Inner conductor: ≤6.0 mΩ (initial value) |
| Outer conductor: ≤2.0 mΩ (initial value) | |
| Insulation resistance | ≥3500 mΩ |

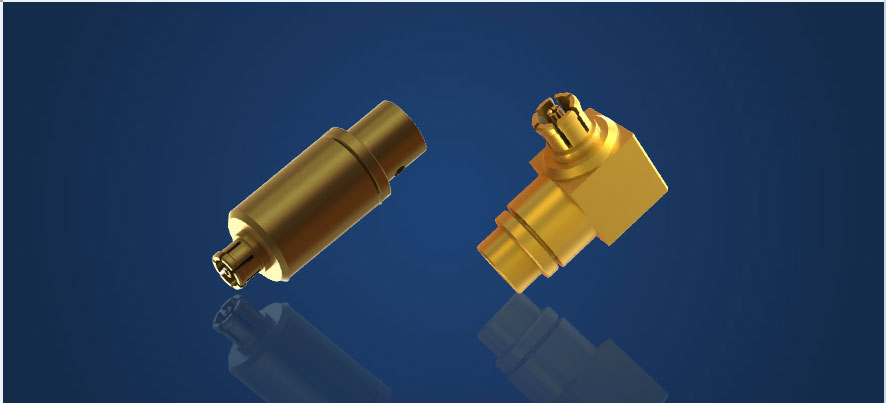

| VSWR | Straight type: ≤1.40 (typical value) |
| Curved type: ≤1.5 (typical value) | |
| Mechanical Characteristics | |
|---|---|
| Male and female insertion force | Typical value: <4 lbs (Full Detent ) <2 lbs (Smooth Bore) |
| Male and female pullout force | Typical value: >2 lbs (Full Detent ) >0.3 lbs (Smooth Bore) |
| Center pin retention | ≥1.5 lbs |
| Durability | 100 times (Full Detent ) 500 times (Smooth Bore) |
