- It is commonly used in base station antenna connectors, antenna connectors, etc.

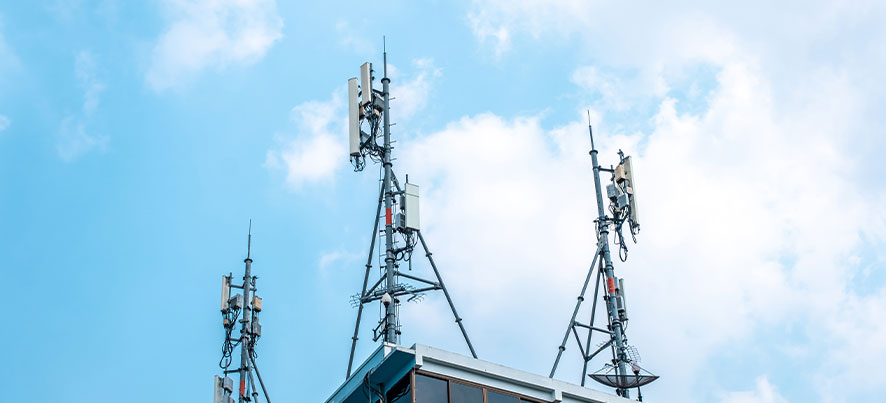

- It is suitable for radar base stations, microwave transmission, mobile communication systems and other fields.

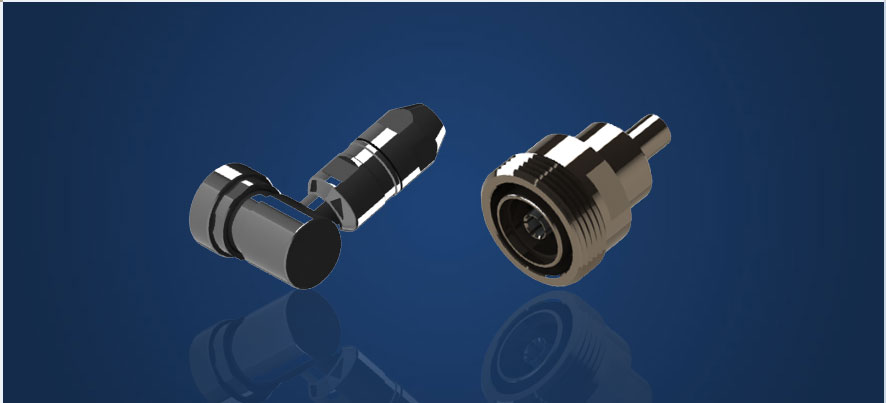

7/16 DIN series connectors are larger 50 Ω impedance threaded connectors with high power capacity, small voltage VSWR, excellent third-order cross-tuning performance, robustness and stability, low loss, and partly waterproof structure,etc.
It can be used outdoors as a connector for medium and high energy transmission and is widely used in microwave transmission and mobile communication systems.
|Characteristic impedance||50 Ω|
|Frequency range||0-7.5 GHz|
|Operating voltage||1000 V(rms)|
|Dielectric withstanding voltage||3000 V(rms)|
|Conductor resistance||inner conductor: ≤0.4 mΩ (initial value)|
|Outer conductor: ≤1.5 mΩ (initial value)|
|Insulation resistance||≥10 GΩ|
|VSWR||S Type: ≤1.30 (typical value)|
|R Type: ≤1.35 (typical value)|
|Nut Pull||≥225 lbs|
|Nut Torque||≥310 inch.lbs|
|Center pin retention||≥45 lbs|
