7/16 DIN series connectors are larger 50 Ω impedance threaded connectors with high power capacity, small voltage VSWR, excellent third-order cross-tuning performance, robustness and stability, low loss, and partly waterproof structure, etc.
It can be used outdoors as a connector for medium and high energy transmission and is widely used in microwave transmission and mobile communication systems
Electrical Performance
Characteristic impedance 50 Ω
Frequency range 0-7.5 GHz
Operating voltage 1000 V(rms)
Dielectric withstanding voltage 3000 V(rms)
Conductor resistance inner conductor: ≤0.4 mΩ (initial value)
Outer conductor: ≤1.5 mΩ (initial value)
Insulation resistance ≥10 GΩ
VSWR S Type: ≤1.30 (typical value)
R Type: ≤1.35 (typical value)
Mechanical Characteristics
Nut Pull ≥225 lbs
Nut Torque ≥310 inch.lbs
Center pin retention ≥45 lbs
Durability 500 cycles

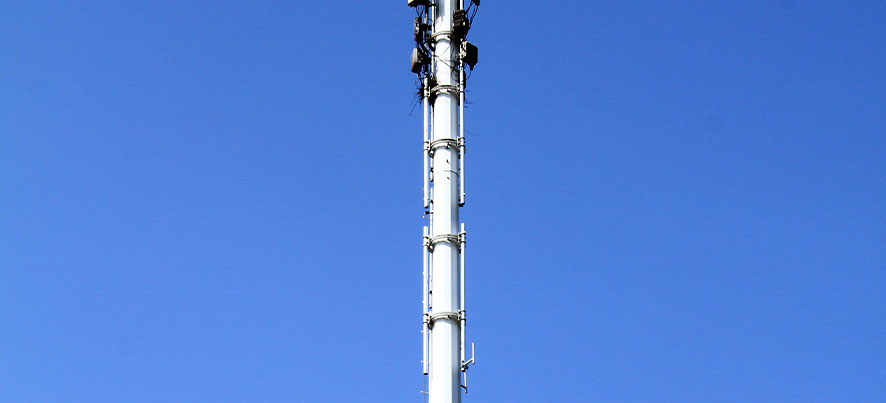

  • It is commonly used in base station antenna connectors, antenna connectors, etc.
  • It is suitable for radar base stations, microwave transmission, mobile communication systems and other fields

Products Series
  • Cable connectors

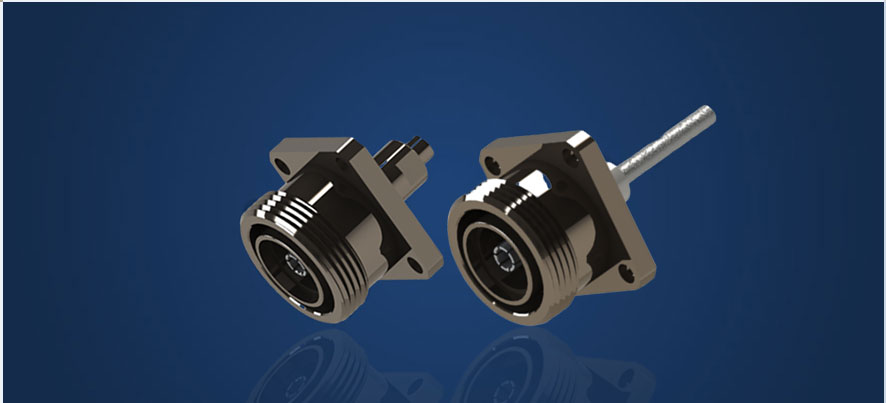

  • Panel Mounted Connectors
  • Adapters
