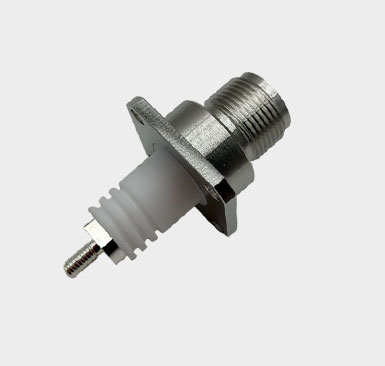

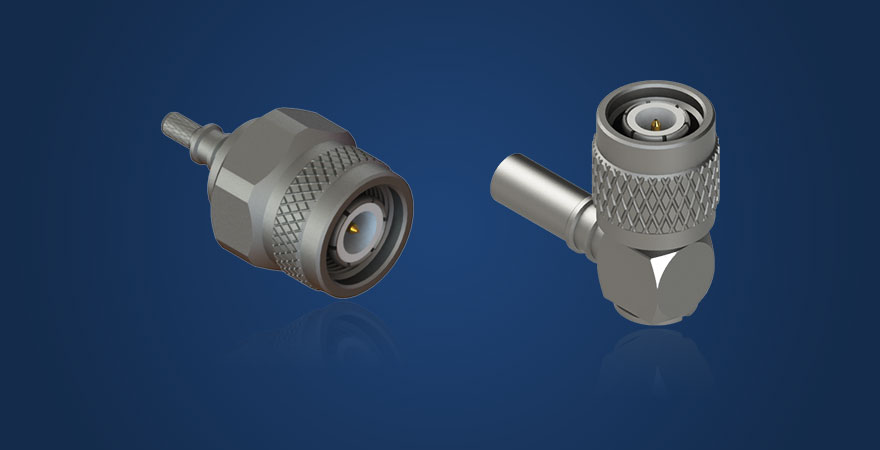

Application
- It is suitable for environments with greater withstand voltage requirements and high-power environments .
- It can be used in place of some N-type connectors in high-voltage environments.
| Electrical Performance | |
|---|---|
| Characteristic impedance | 50 Ω |
| Frequency range | DC-4 GHz |
| Operating voltage | 1330 V(rms) |
| Dielectric withstanding voltage | 4000 V(rms) |
| Conductor resistance | inner conductor: ≤1.0 mΩ (initial value) |
| Outer conductor: ≤0.2 mΩ (initial value) | |
| Insulation resistance | ≥5000 MΩ |
| VSWR | S Type: ≤1.30 (typical value) |
| R Type: ≤1.35 (typical value) | |
| Mechanical Characteristics | |
|---|---|
| Nut Pull | ≥100 lbs |
| Nut Torque | ≥15 inch.lbs |
| Center pin retention | ≥6 lbs |
| Durability | 500 cycles |
